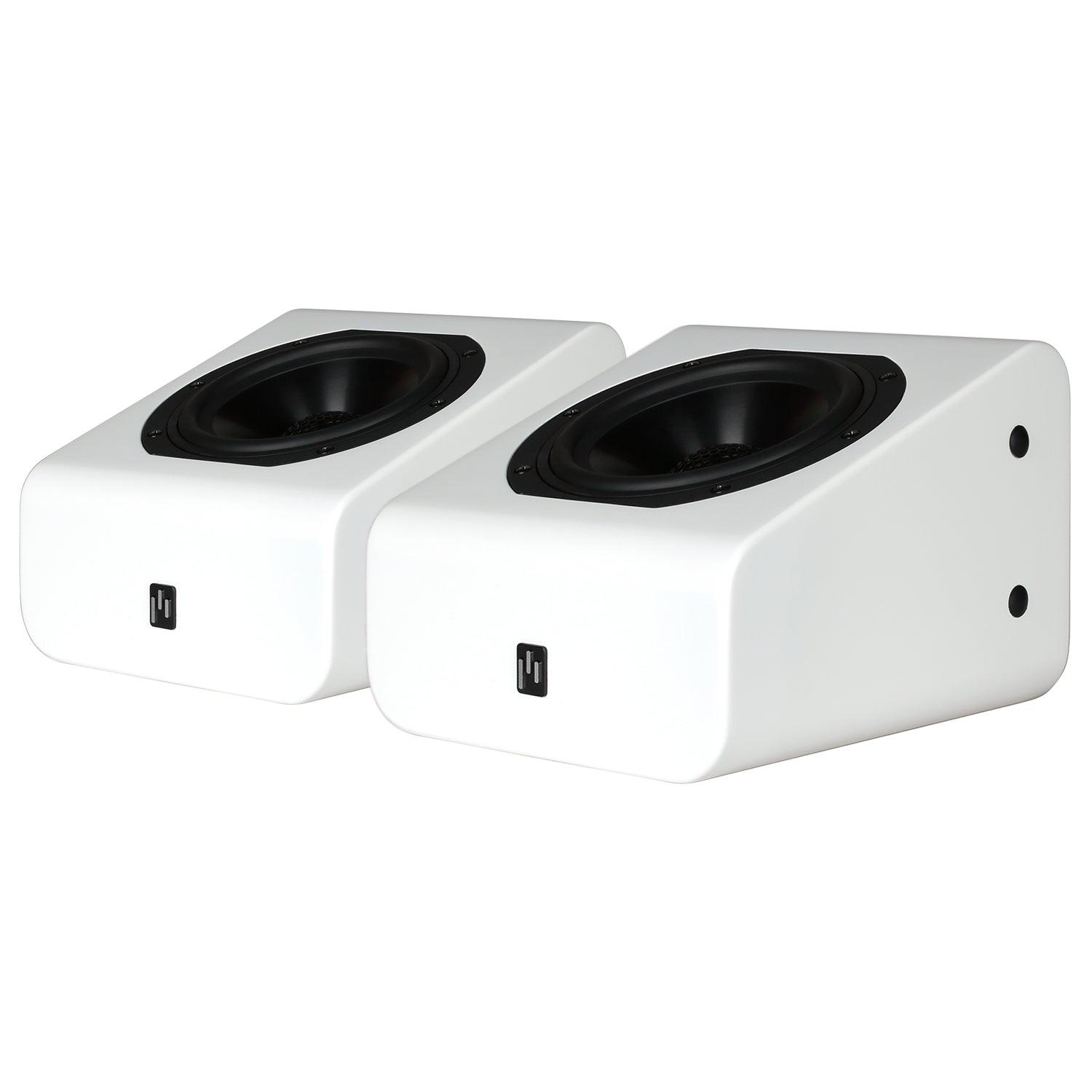

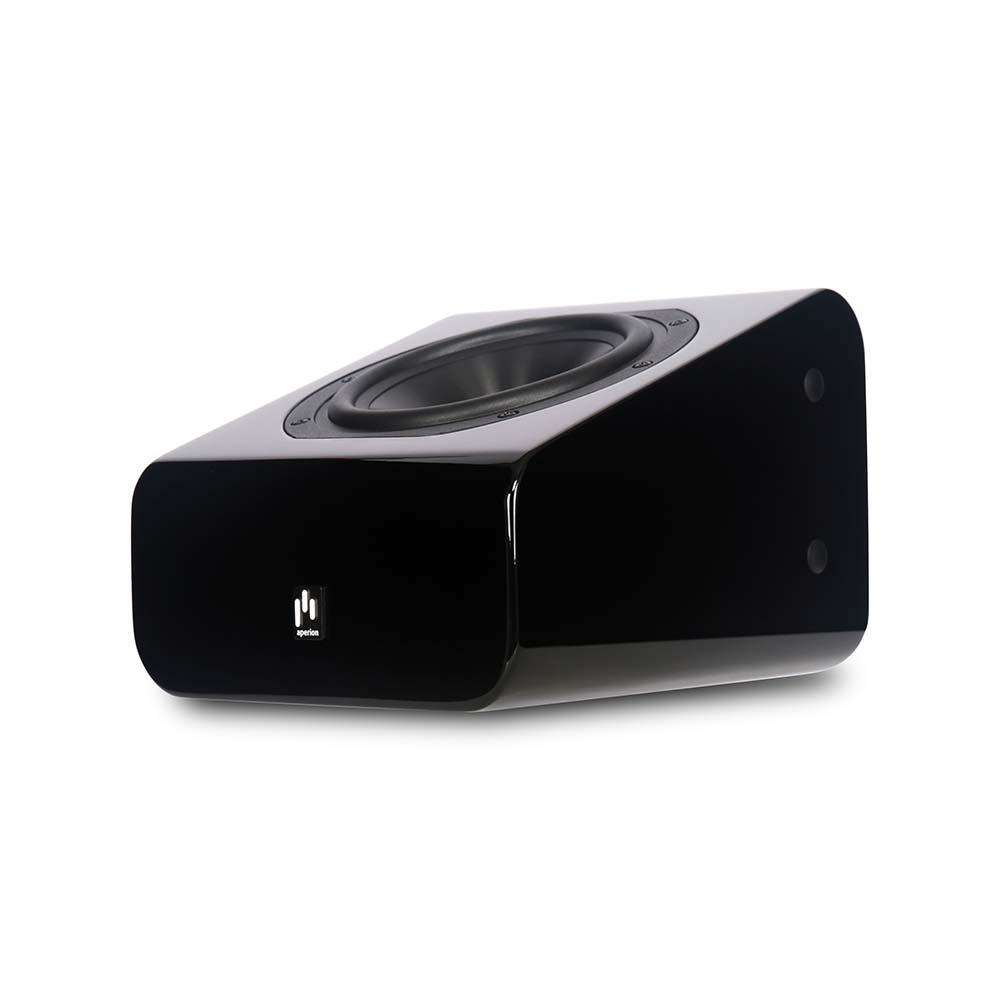

A5 Atmos 5.25" Immersive Reflective/Height Module Speaker Pair
A5 Atmos 5.25" Immersive Reflective/Height Module Speaker Pair
Low stock
Couldn't load pickup availability
The Novus A5 height speakers stand out for its remarkable versatility and superior sound quality, achieved through carefully chosen components.
It is perfect for premium 3D audio systems and performs exceptionally well as a surround speaker in conventional multi-channel setups. With various mounting options available, the A5 can be precisely positioned for optimal listening.
The APERION A5 Immersive Height Module is perfect for achieving the latest surround formats such as Dolby Atmos and DTS:X that require "height" channels. Traditionally, this required installing in-ceiling speakers above your seating area. But with the Aperion A5, you can attain this effect with several different methods that do not require you to cut holes in your ceiling.
Specification
| Frequency Response: | (+/- 3dB) 90-30,000 Hz |
| Impedance: | 6 Ohms |
| Sensitivity: | 87 dB |
| Recommended Power: | 20-80 Watts |
| Peak Power: | 160 Watts |
| Tweeter: | Natural-Fiber Silk-Dome, Ferrofluid-Cooled |
| Woofer: | 5.25" Aluminum Cone Woofer |
| Driver Configuration: | 2-Way |
| Enclosure Type: | Anti-Resonant, Sealed |
| Product Weight: | 7.5 lbs/ 3.5 Kg each |
| Product Dimensions: | 5.7" x 7.1" x 7.9" (HxWxD) / 146mm x 180mm x 200mm (HxWxD) |
| Placement Location: | On-top of Speakers, On-wall, Ceiling-Mounted, Surround Speakers |
| Shipping Weight: | 19 lbs/8.5 Kg Pair |
| Shipping Dimensions: | 19" x 12" x 12" / 470 x 295 x 300 mm (LxWxH) |
Features
Concentric Driver Design
|
While looking for the best silk material, our team discovered a natural fiber from Germany that excels in high-frequency reproduction. Each Novus speaker comes with this innovative tweeter, utilizing a neodymium magnet and a ferrofluid-cooled voice coil to achieve a frequency range up to 30 kHz. This design is known for its high precision, clarity, and adaptability. The 5.25" aluminum woofer features a coaxial design that delivers clear midrange and deep bass. Its optimized dispersion allows the speaker to work well on both walls and ceilings, ensuring that sound effects are sharp and easy to pinpoint. |
Versatile Placement Options
| The APERION A5 Immersive Height Module can be placed on top of your front left and right speakers, mounted on the wall in front and behind, or mounted directly on the ceiling. |
Up-Firing
| Add-On top firing speakers to make any flat top speaker Dolby Atmos and DTS:X compatible. |
Cabinet Design
| RF Molded Curved Cabinets to reduce internal standing waves. |
Multiple Mounting Options
| On Speaker/On-Wall/On-Ceiling/On Desk.... |
Rotate the logo
|
You can even rotate the logo to match whether the speaker is mounted vertical or horizontal. |

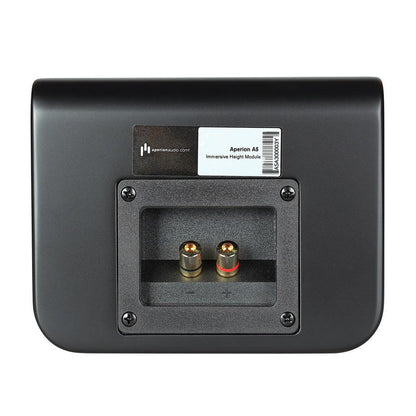

5-Way gold-plated binding posts
| The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins. |
Lightweight Magnetic Grille
| To protect the speaker innards from accidents, pets, or curious fingers, the Novus line sports a lightweight magnetic grille, which can easily be removed when it’s time to show off the goods to your friends and family. |
Multiple Mounting Options
Method #1
Comfortably set the APERION A5 on top of your front left and right speakers. This will allow the sound to be reflected off the ceiling and produce the illusion of overhead speakers. If using one pair, place on front speakers. For two pairs, place on top of the front and rear speakers.
Method #2
If your ceiling does not allow for adequate reflection, mount the APERION A5 high on the front wall. Due to the angle of the speaker, this will also produce a very effective rendering of the overhead channels. Two pairs can be mounted in this fashion on the front and rear walls. The same can be done on the side walls if the front/rear is not suitable.
Method #3
The APERION A5 can also be direct mounted on the ceiling. This avoids having to cut holes in the ceiling, yet provides the ideal positioning of the speakers physically located overhead. Multiple pairs can be used in this configuration.
Key Features
- Versatile Placement Options
- Add-On top firing speakers to make any flat top speaker Dolby Atmos and DTS:X compatible.
- Coax Driver Design
- Sloping Baffle
- RF Molded Curved Cabinets to reduce internal standing waves.
- APERION® Customized Internal Wiring
- APERION® Customized Crossover Network
- 5-Way Gold-Plated Binding Posts
- 12 Gauge Binding Post Straps
- Lightweight Magnetic Grille
- Multiple Mounting Options & Easy Connection
- Wall and Ceiling Mounting
Package Contents:
- A5 Speakers x Two (2) Pcs
- Manual x One (1) Pcs
- Polish Cloth x One (1) Pcs
- Gloves x Two (2) Pcs
- Rubber Bumpers x Eight (8) Pcs
