Theatrus T63S 6.5" Slim On-Wall Speaker
Theatrus T63S 6.5" Slim On-Wall Speaker
Couldn't load pickup availability
Pre-Sale!
Introducing the Theatrus T63S On-Wall Speaker, which is currently in production and will be available for pre-order.
Delivery date: approximately mid-June
Special Offer: Participate in the pre-sale event to enjoy a 10% discount on new products. Quantity is limited, first come, first served!

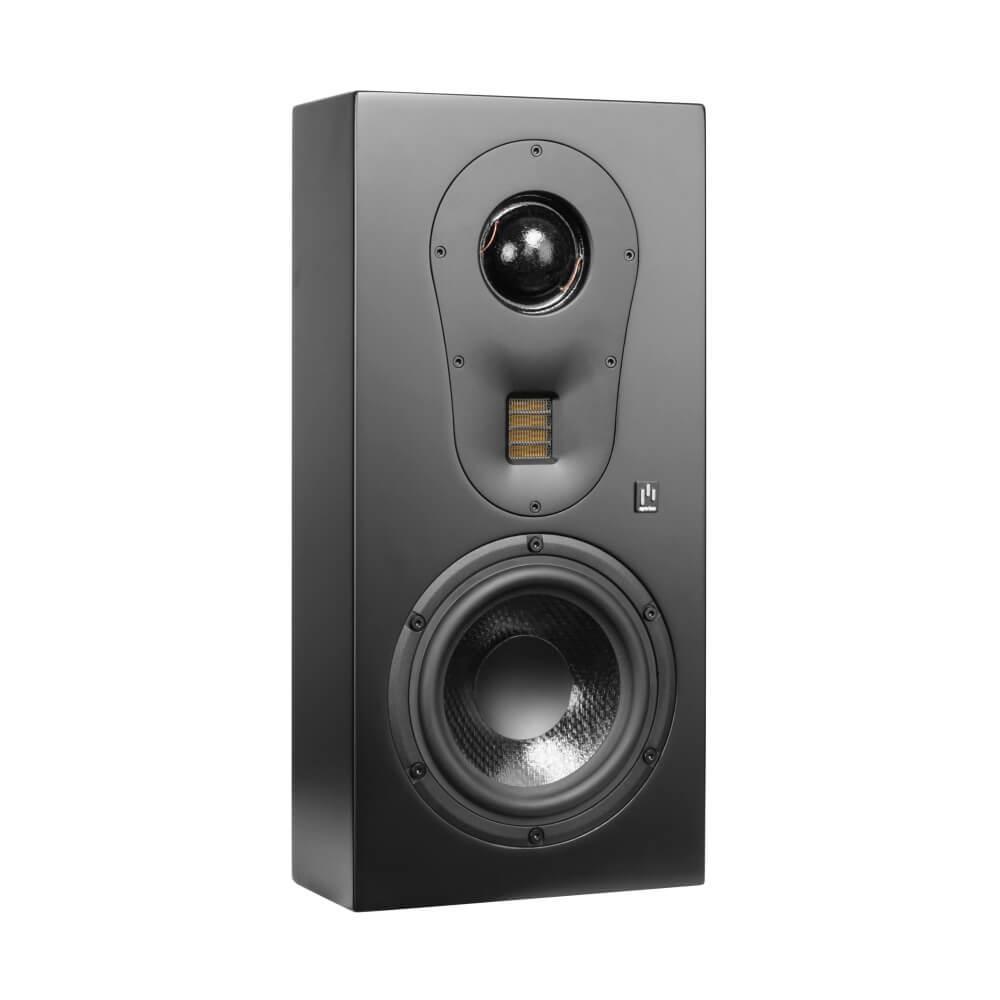

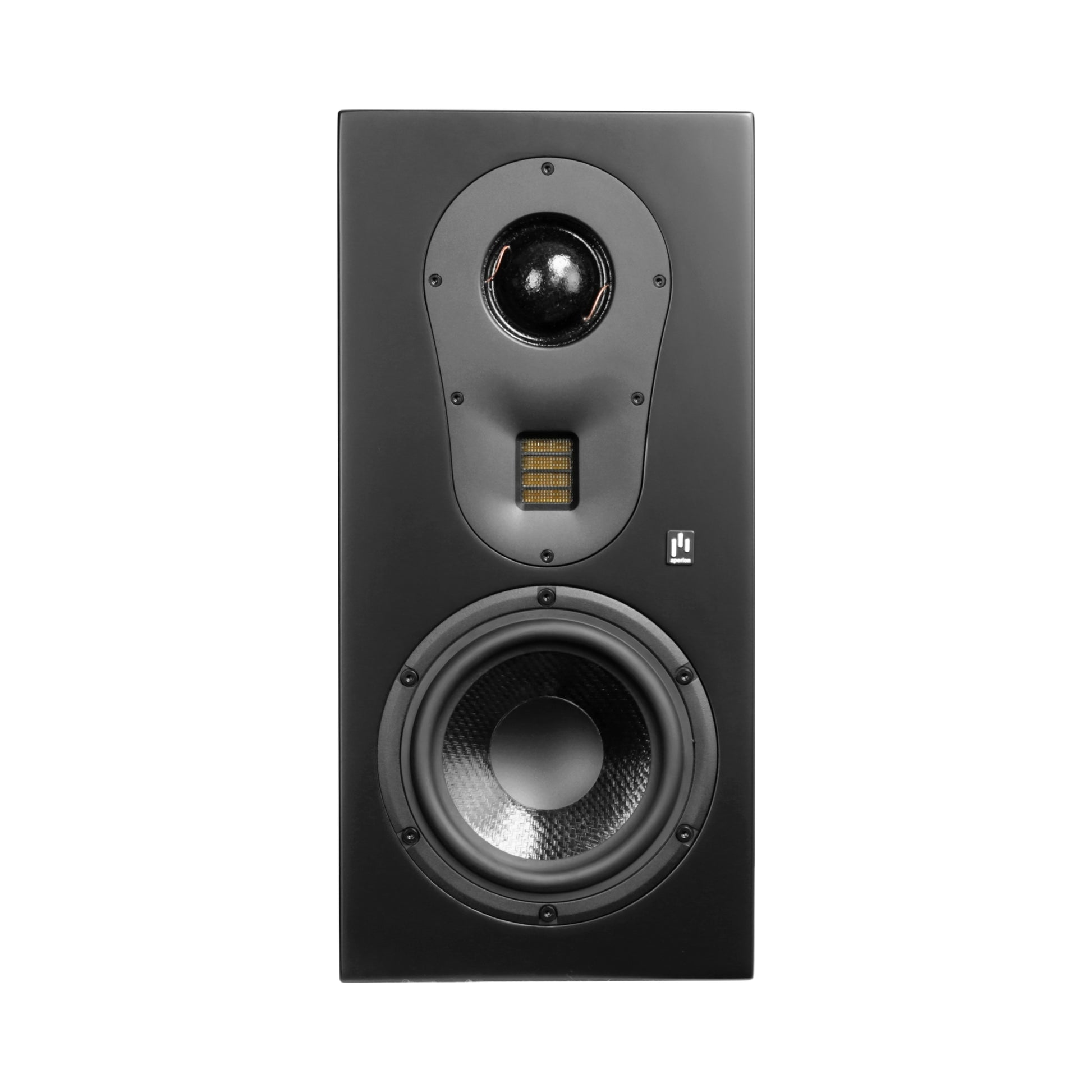

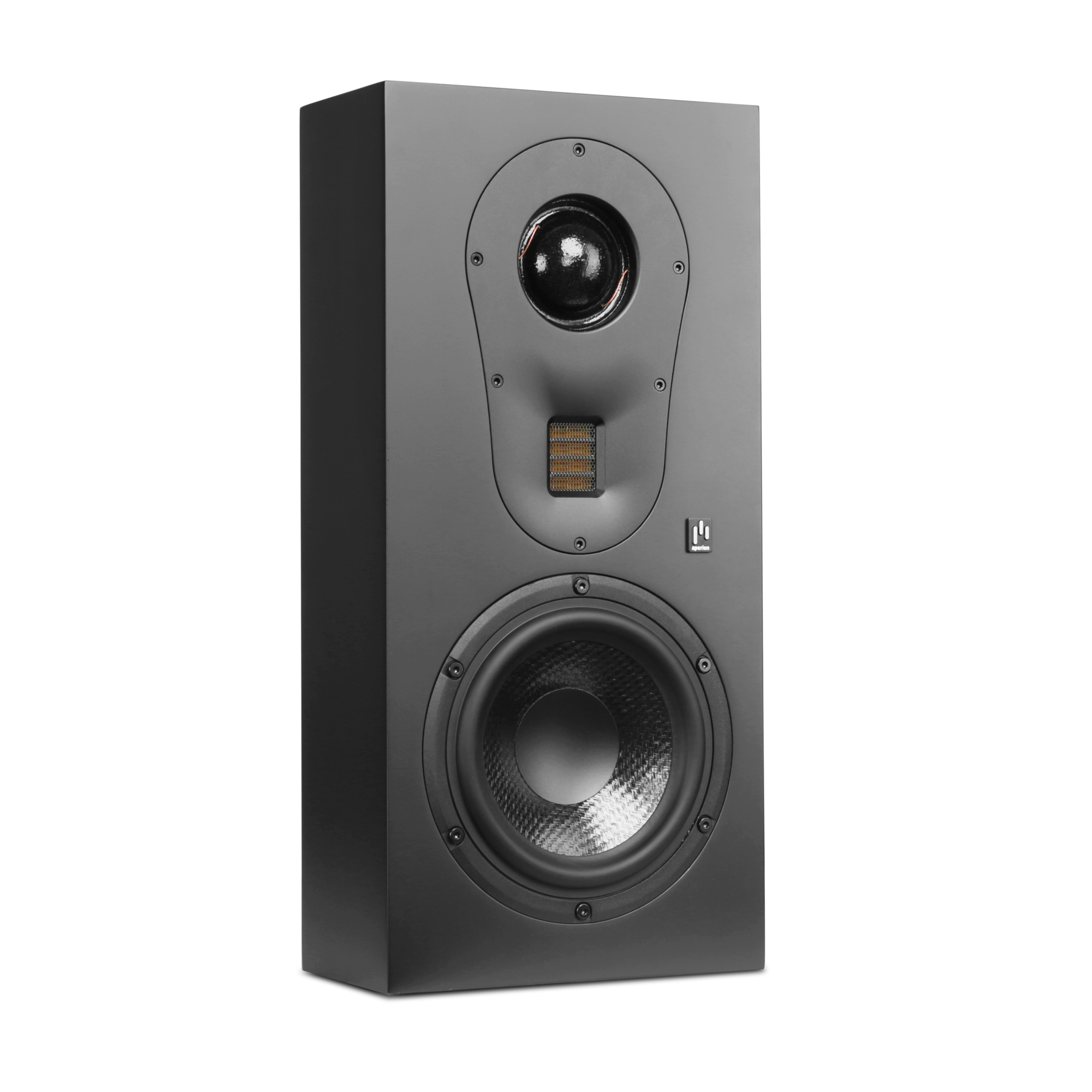

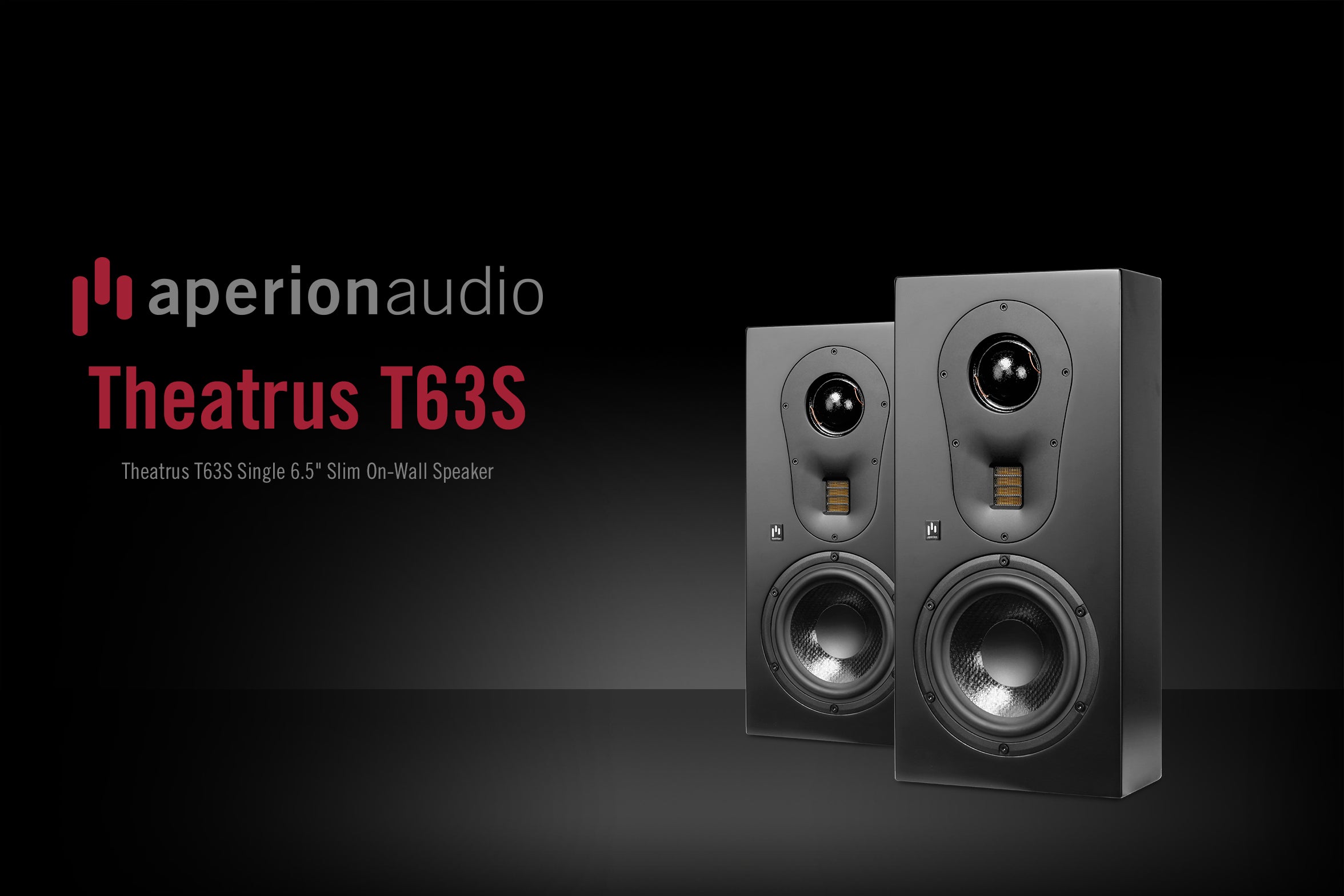

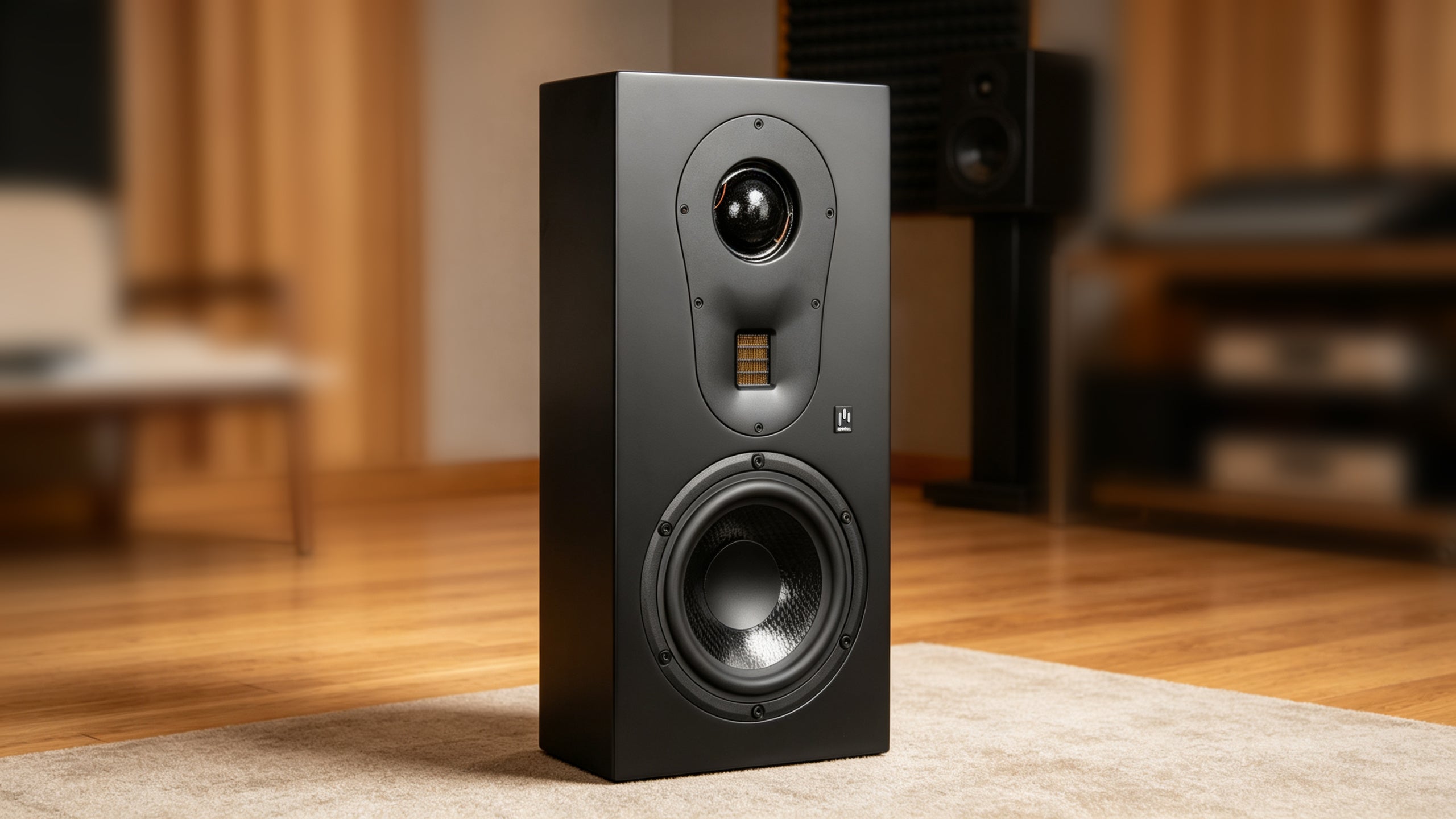

Theatrus T63S On-Wall Speaker | Slim 3-Way Design | Single 6.5" Woofer
The new Theatrus T63S On-Wall Speaker joins a growing line of slim on-wall speakers from our highly acclaimed Theatrus Cinema Studio line. Designed and perfected for custom installation, these slim cabinets offer an unobtrusive solution for massive sound staging. All of our Theatrus speakers are loaded with our latest crossover and driver technologies, housed in our stealth black cabinetry, and includes our stealth mounting bracket that makes installation a breeze.
Specification
| Frequency Response: | (+/- 3dB) 70-35,000 Hz |
| Impedance: | 4 Ohms |
| Sensitivity: | 91 dB |
| Max SPL: | 116 dB |
| Recommended Power: | 20-150 Watts |
| Peak Power: | 300 Watts |
| Tweeter: | One AMT (Air Motion Transformer) Tweeter |
| Midrange: | One German 2" Soft-Dome Fabric Mid-Range Driver |
| Woofer: | One German 6.5" Curv® Cone Woofer |
| Driver Configuration: | 3-Way Design | 1x 6.5" Woofer | 1x 2" Mid-Range | 1x AMT Tweeter |
| Enclosure Type: | Sealed Cabinet, Anti-Resonant, Internally Braced |
| Product Weight: | 17.2 Lbs / 7.8 Kgs |
| Product Dimensions: |
W 8.7" x H 18.1" x D 4.3" Without Grilles W 220mm x H 460mm x D 110mm Without Grilles |
| Placement Location: | Main Speakers (Left, Center, Right), or Rear/Side Surround Speakers |
| Shipping Weight: | 22 Lbs / 10 Kgs |
| Shipping Dimensions: |
L 13" x W 11" x H 24" L 335mm x W 275mm x H 605mm |
Features

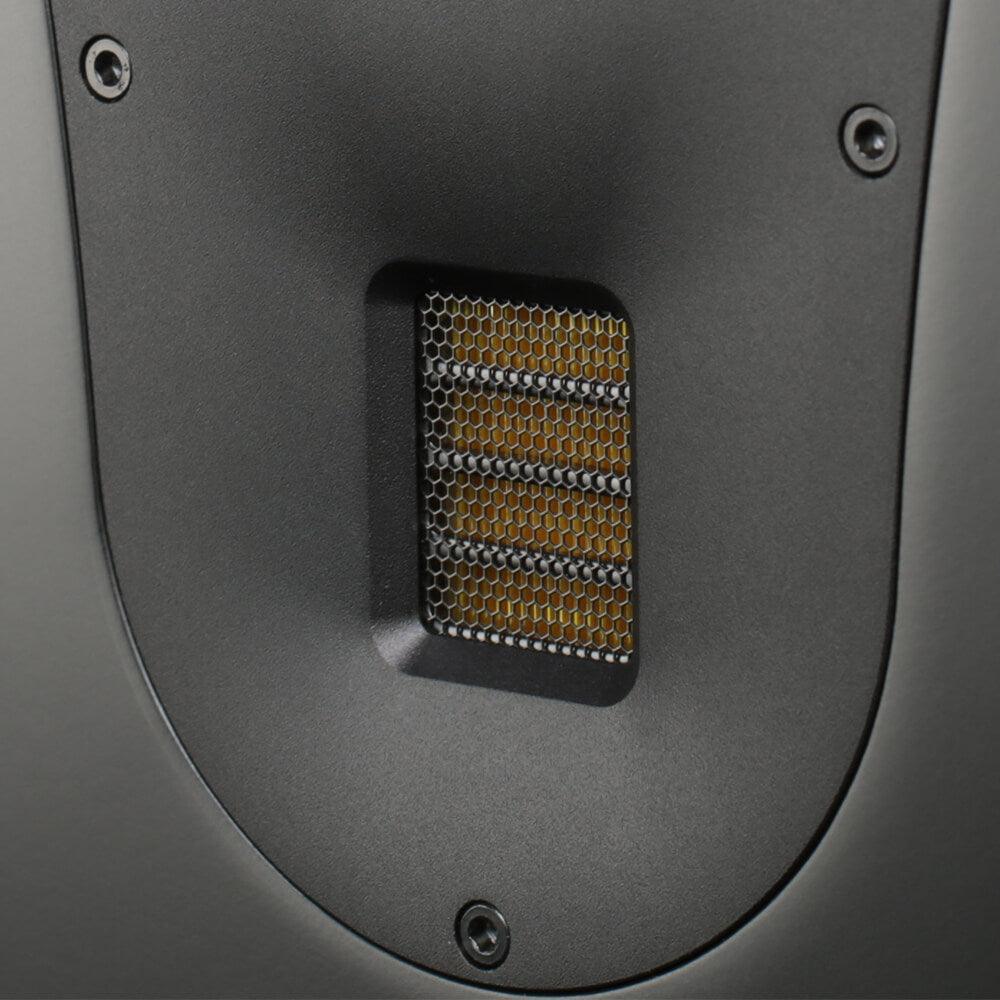

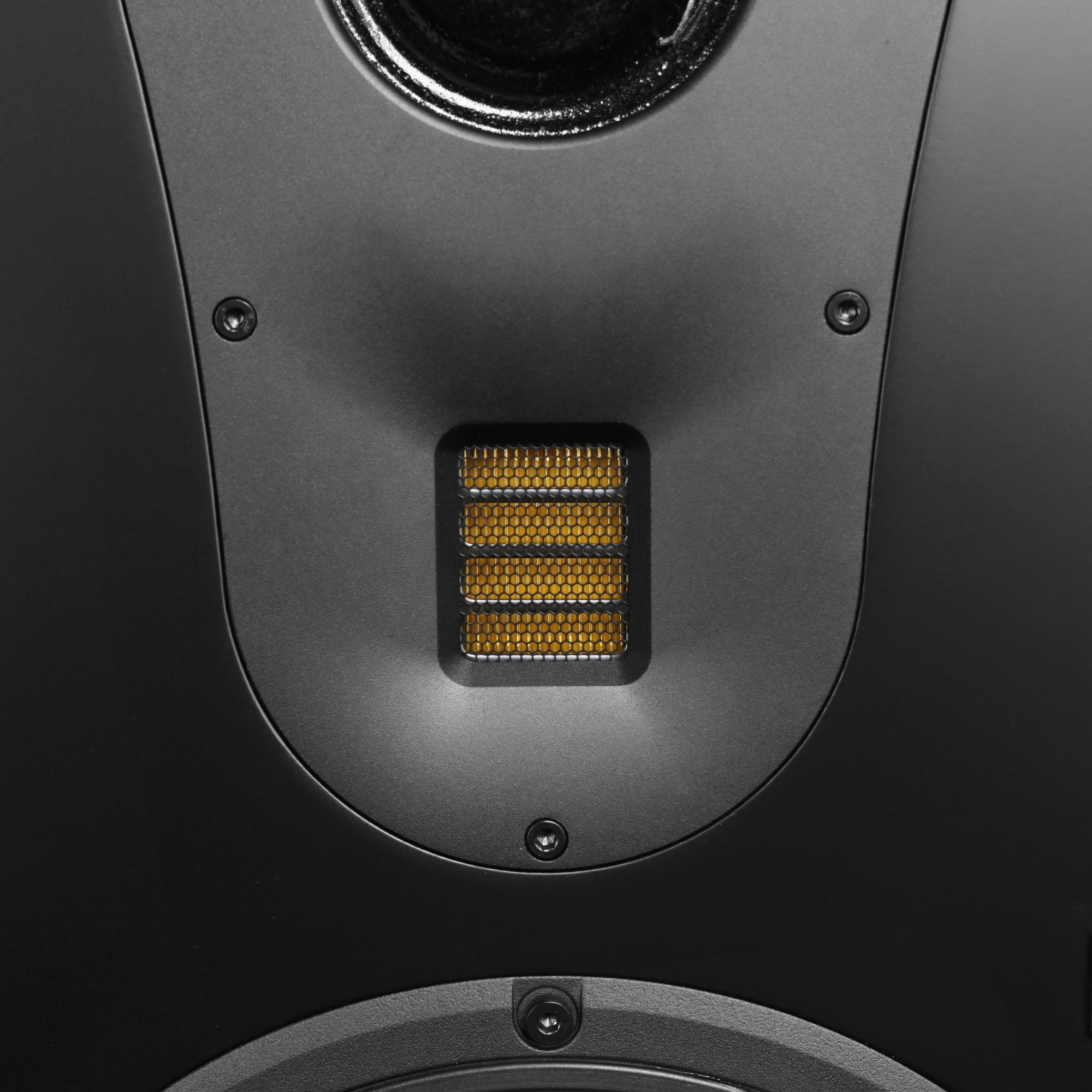

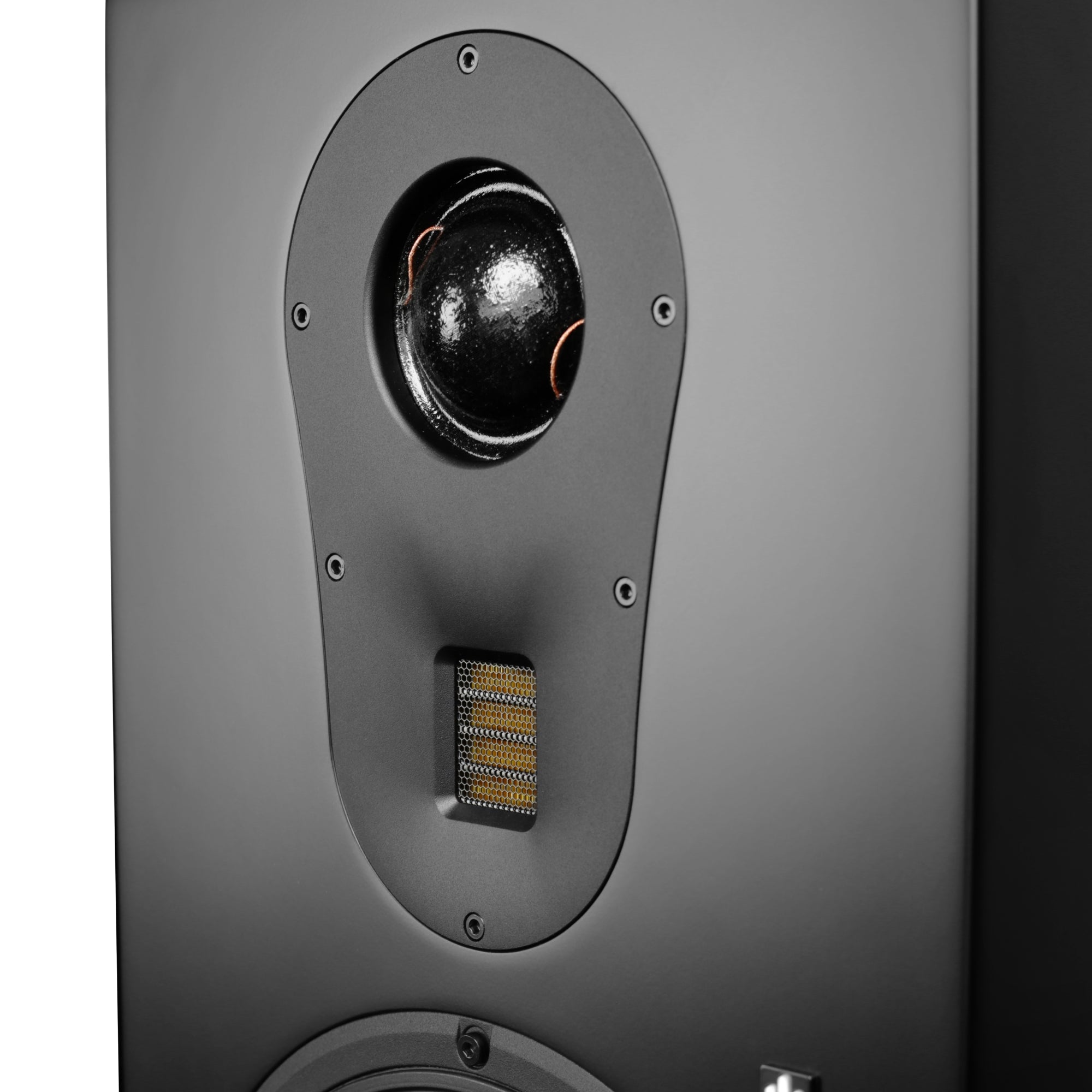

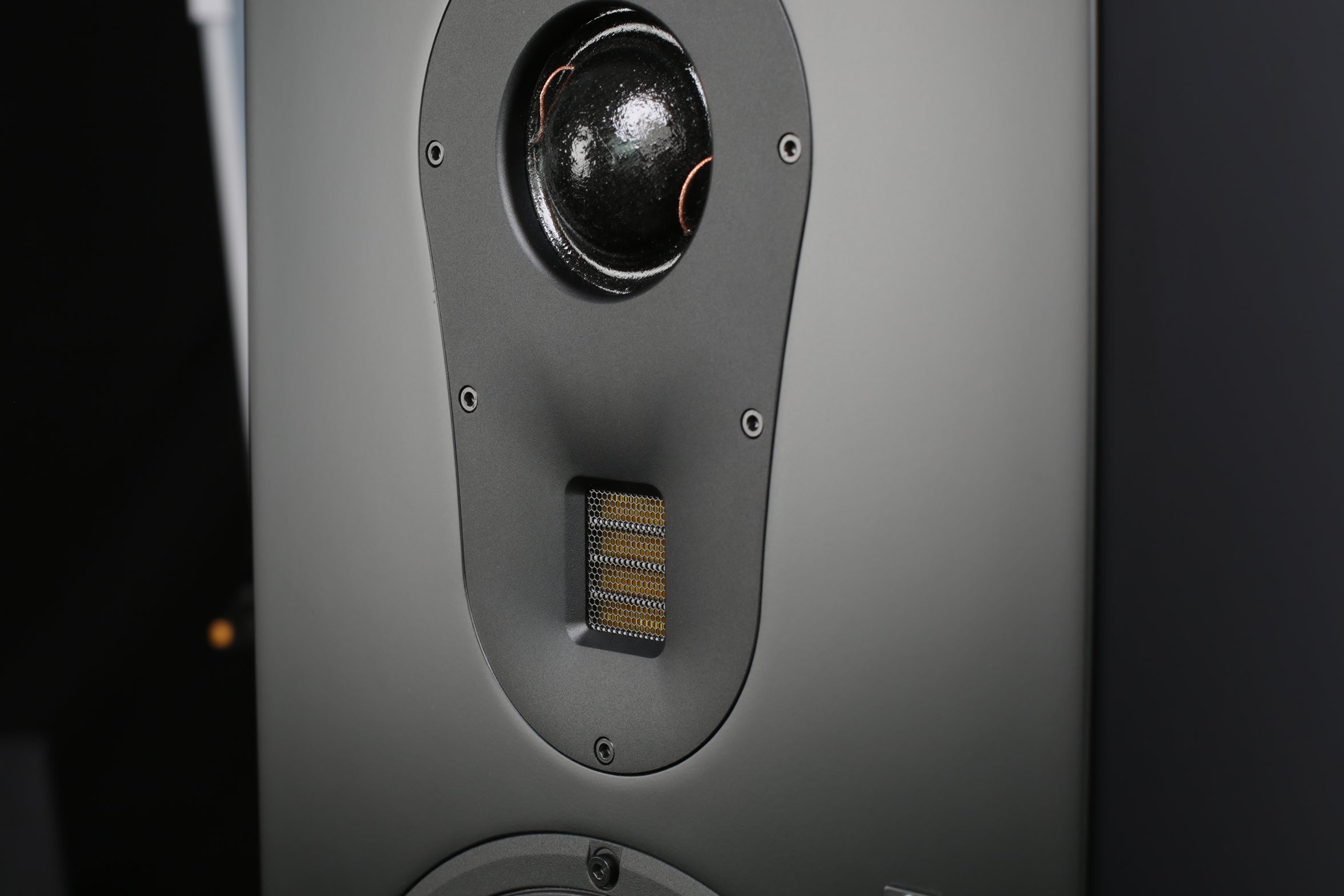

Aperion Air Motion Tweeter
|
The APERION AMT tweeter features a sensitivity of up to 103 dB and a frequency response extending to 40 kHz, allowing for efficient sound conversion and a wide sound range. Utilizing AMT technology, it delivers high-fidelity sound without compression, ideal for high-quality audio enthusiasts. The pneumatic tweeter produces vibrant high-frequency effects, perfect for string instruments and classical music. Its excellent horizontal diffusion expands the listening range, making it suitable for large and medium-sized home theater rooms. |

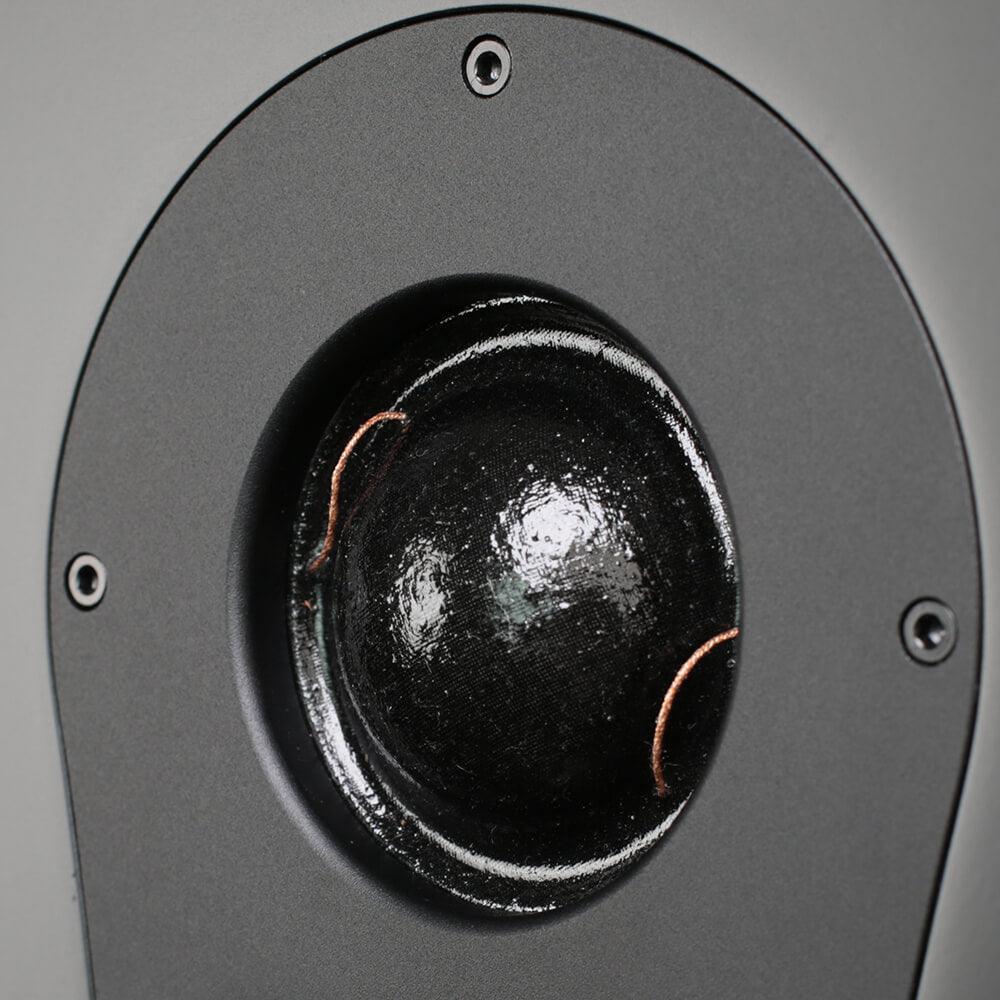

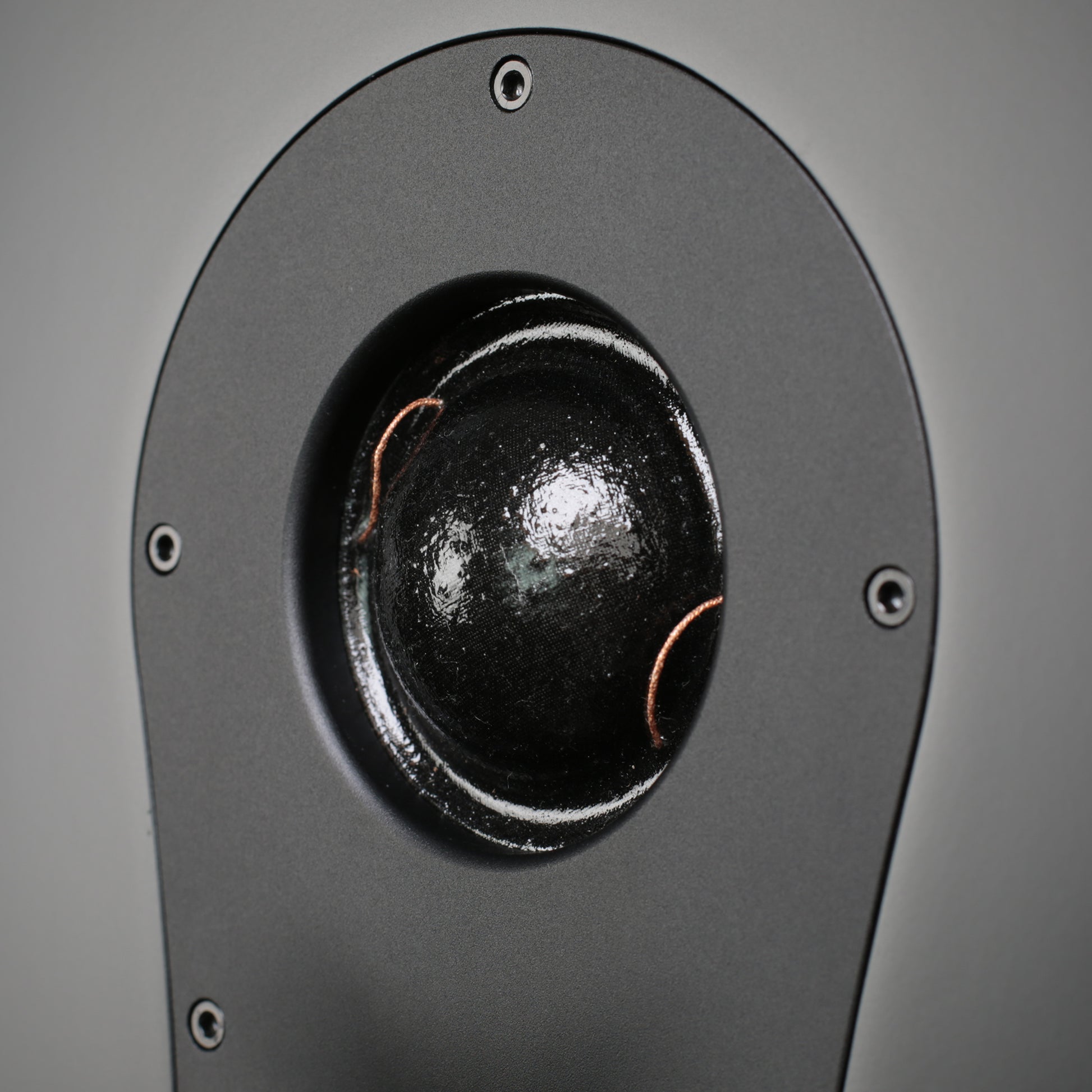

2" Soft-dome Midrange Driver
| Our high end soft-dome midrange unit features a large, low distortion 50mm voice coil, which exceeds the normal size of this type of drive unit. It's wide pole structure and special damping coating significantly reduce the medium frequency segmentation vibration. This midrange driver is commonly used in high-end monitors and audiophile speakers and is renowned for its unique design and exceptional sound quality. It provides excellent off-axis response and low distortion, delivering a warm, whole midrange tone. Additionally, it enhances sound diffusion and directivity, ensuring even distribution and reducing standing waves and reflections for a more natural listening experience. |

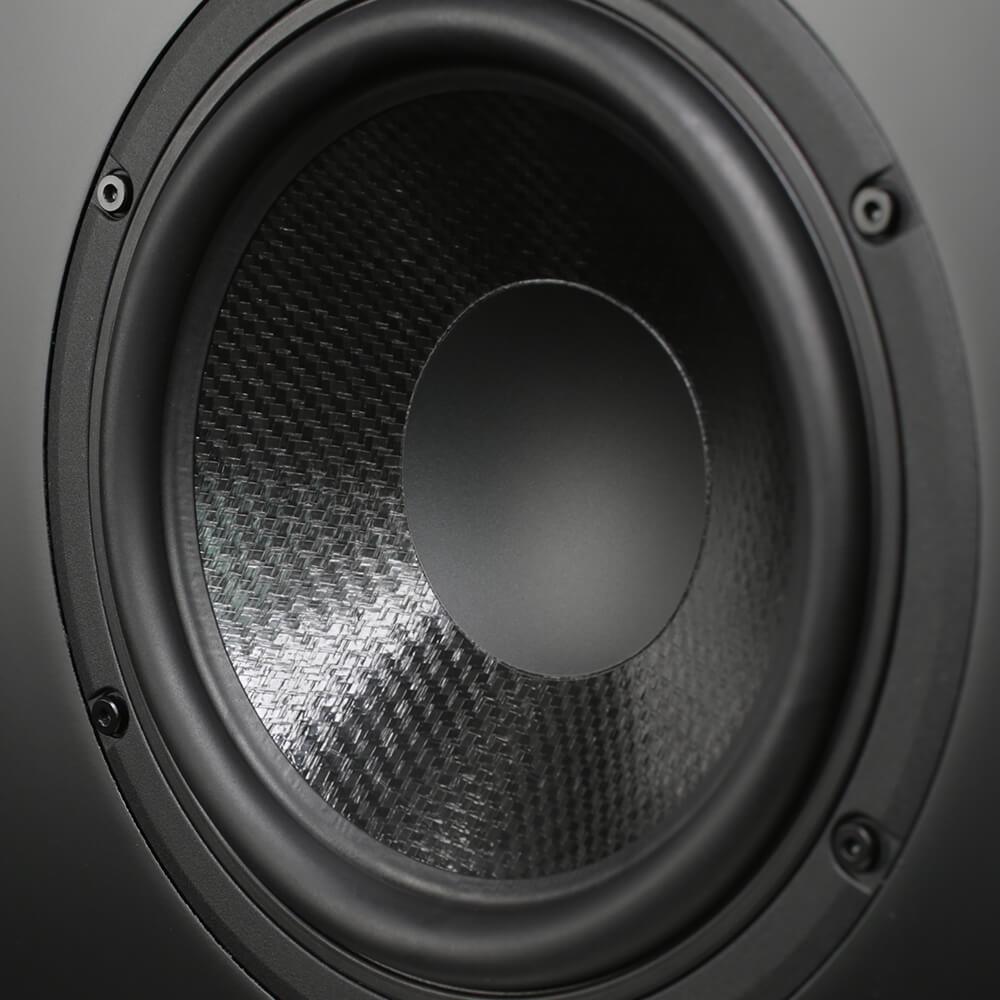

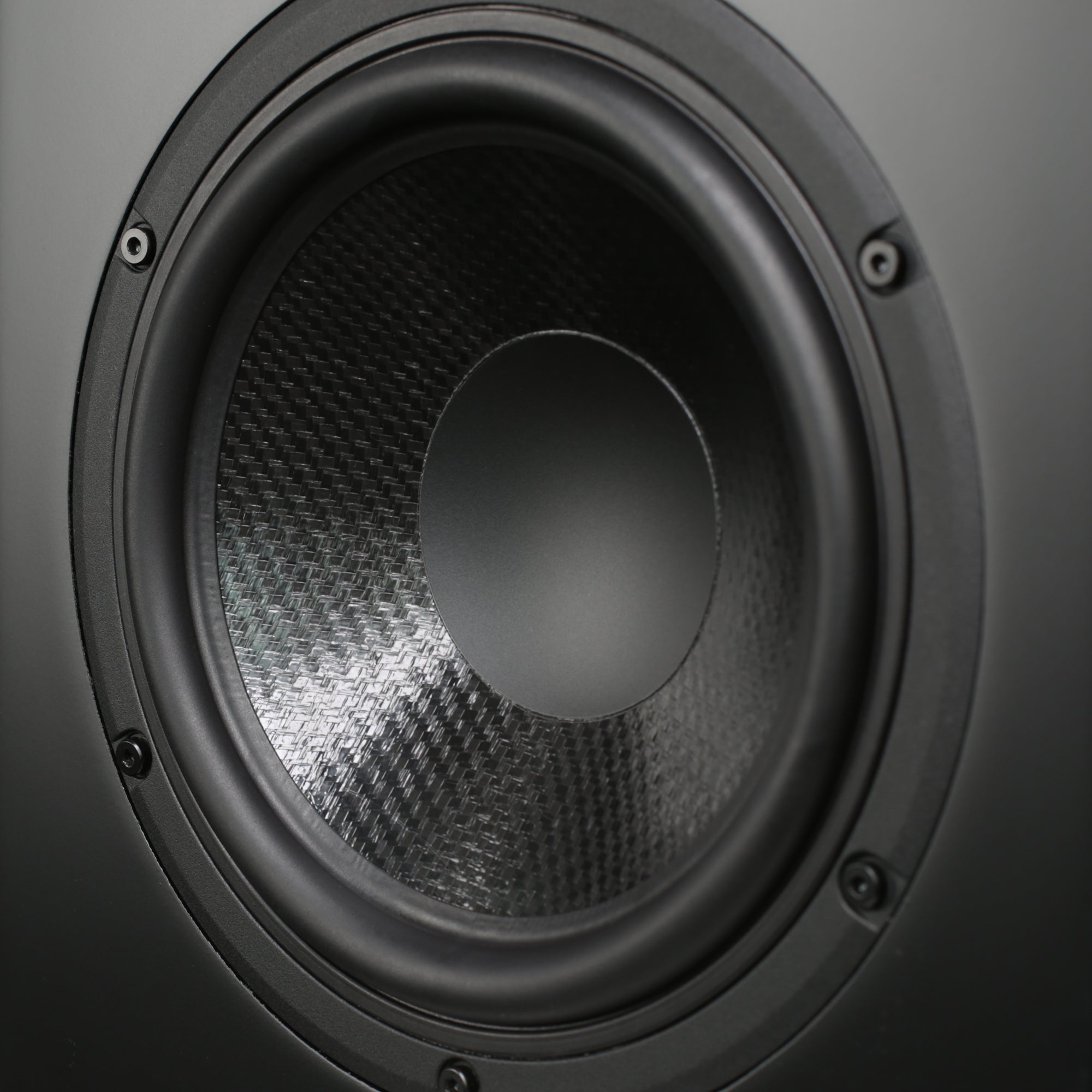

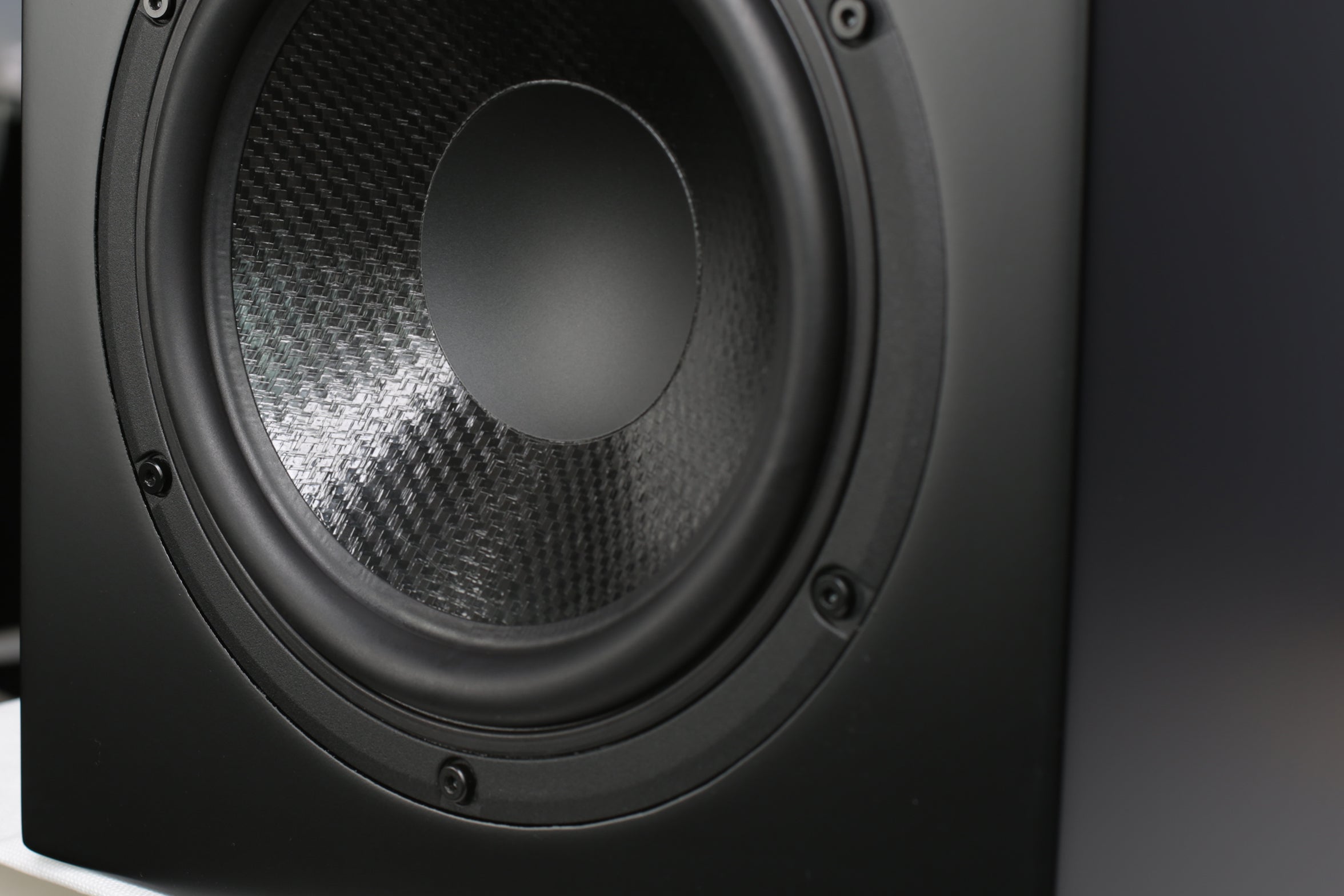

6.5" Curv Woofer
| The Theatrus line features a new Curv material from Germany Propex Fabrics. The properties of this new Curv material are lightweight, yet rigid and stiff, maintain a high temperature resistance without any water absorption, and the most important in crating a driver unit - this material has a high Young's Modulus and internal damping. |

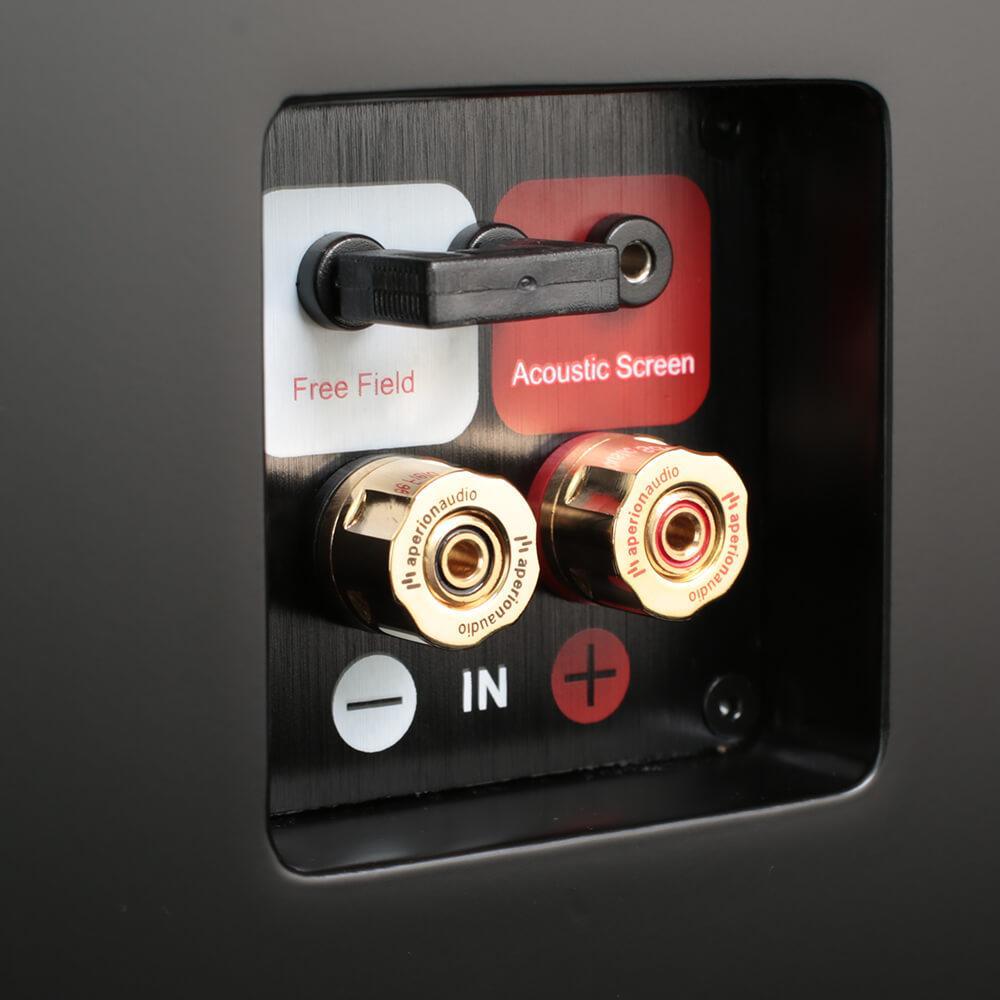

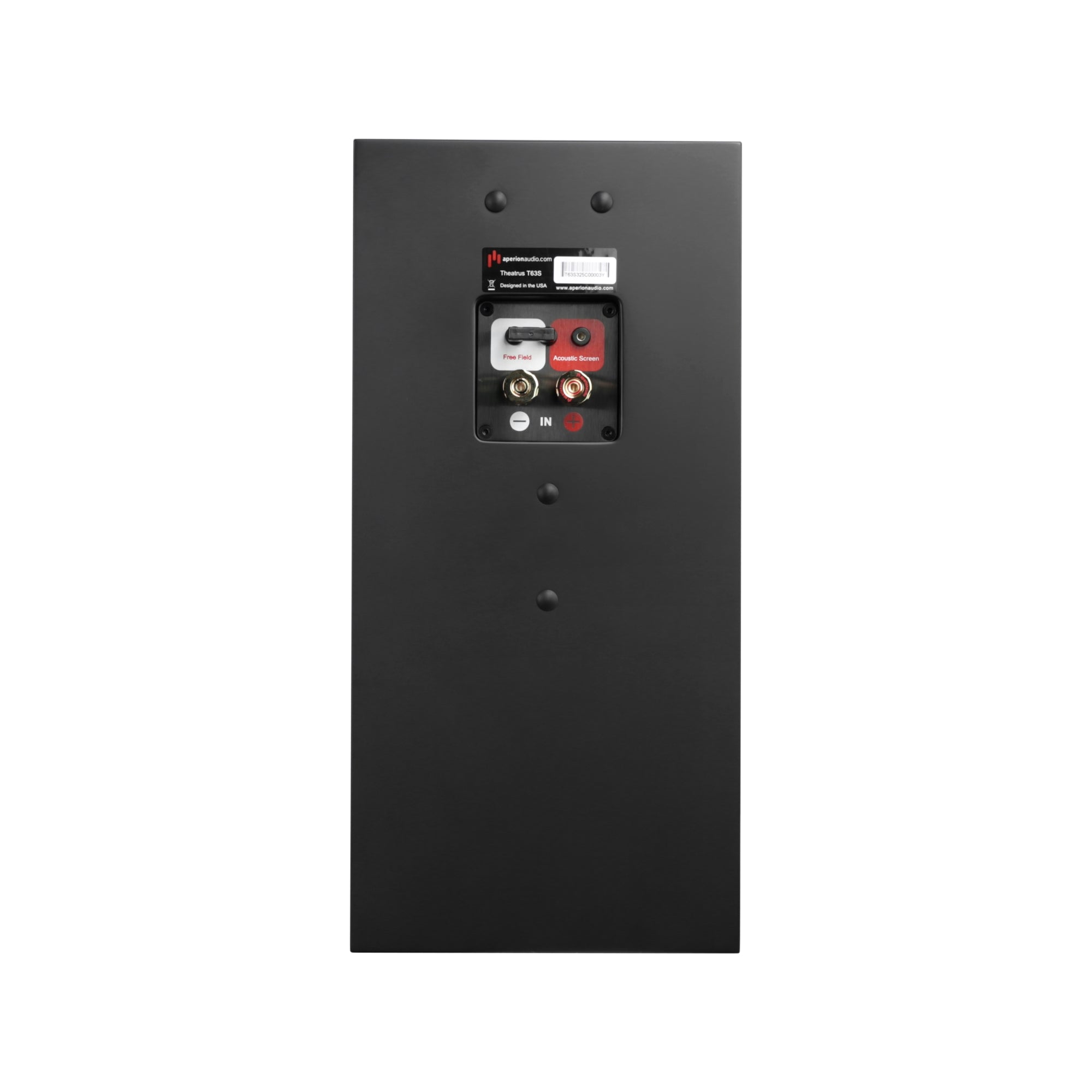

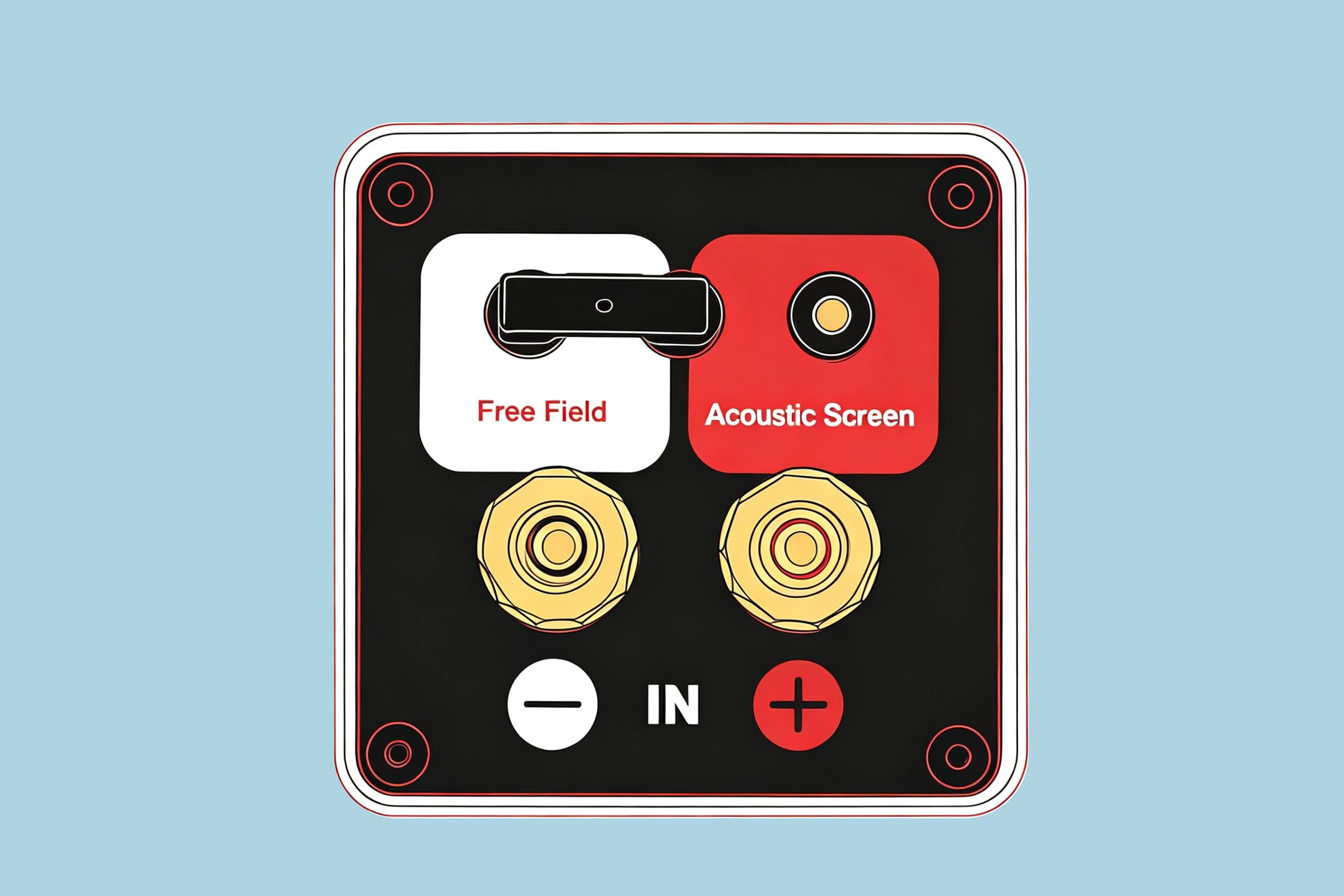

Sound Adjustment
| The new Theatrus Speakers adapts to various arrangements and positions with adjustments for Baffle-Wall (In-Wall) or Free-Field (On-Wall). Along with the bass adjustment, we also included a high frequency adjustment to compensate the high frequency when the T63S is placed behind a projection screen. |

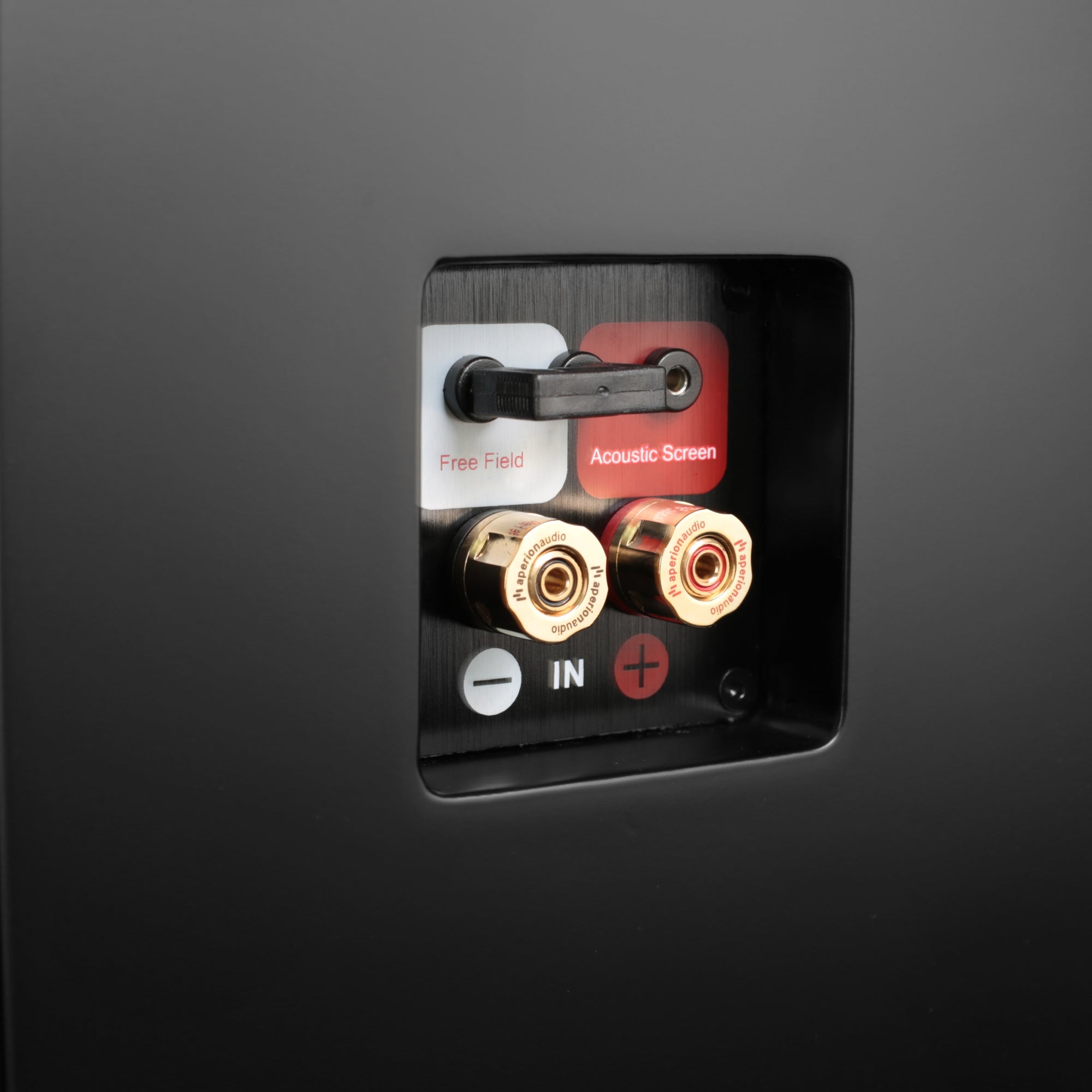

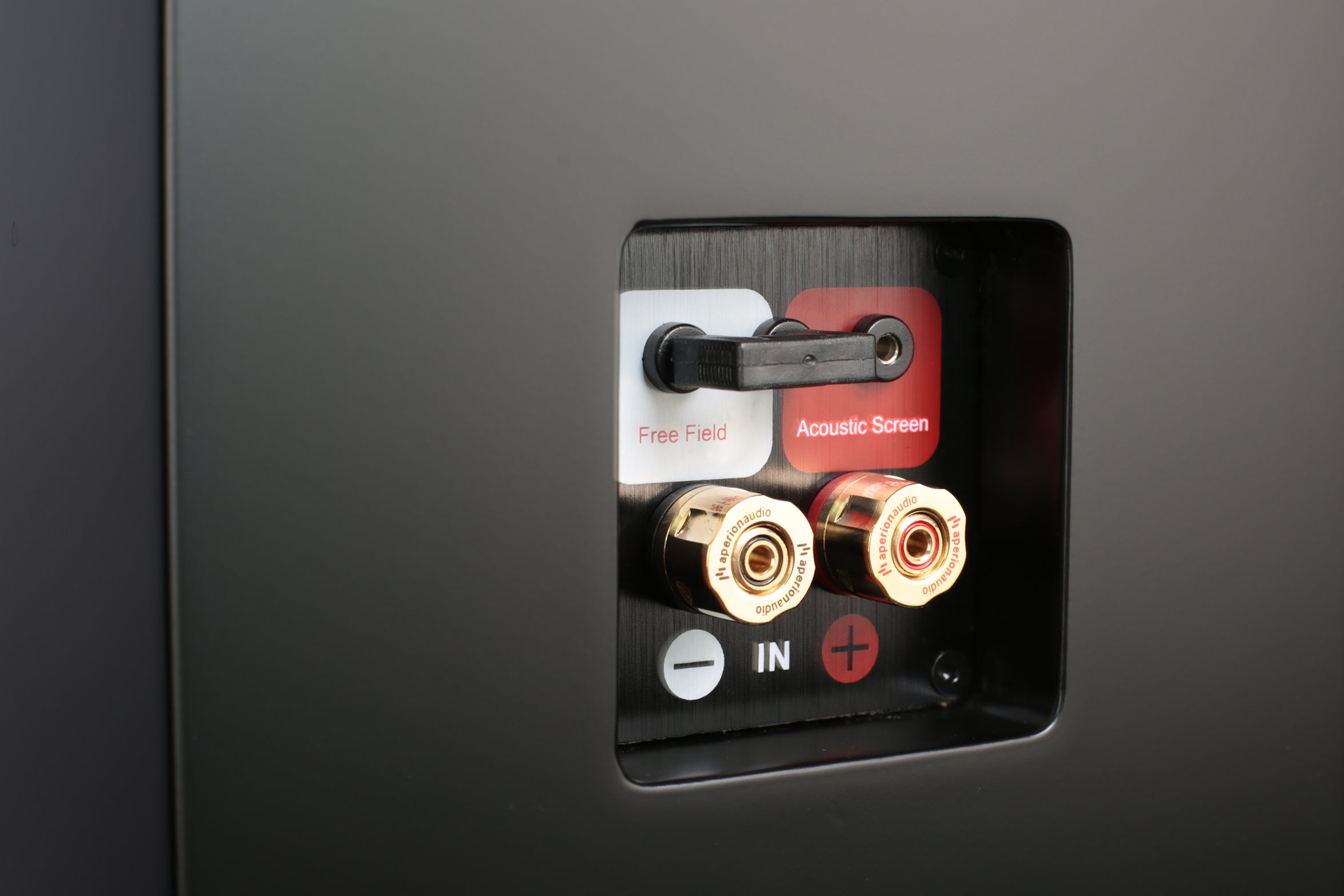

5-Way gold-plated binding posts
| The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins. |

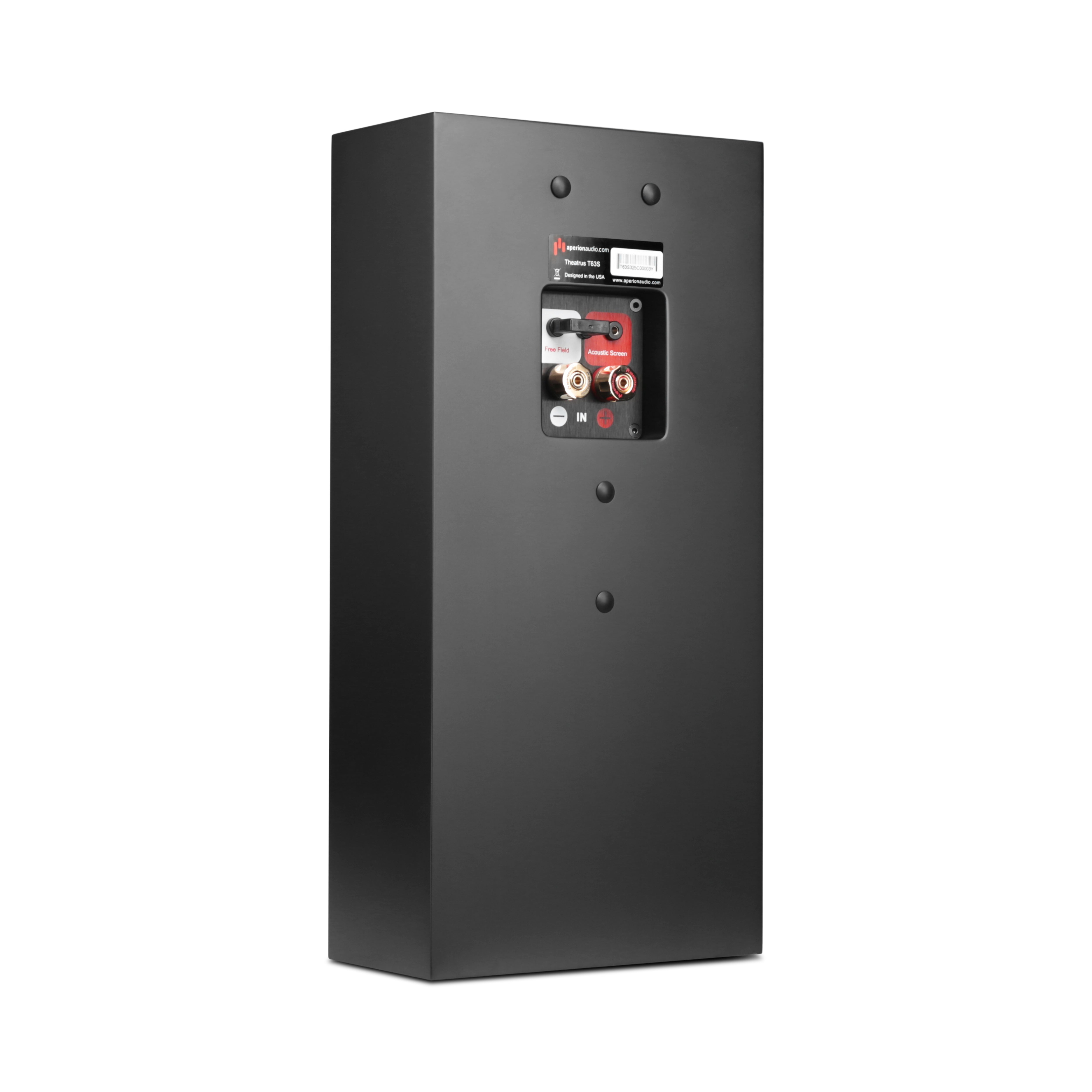

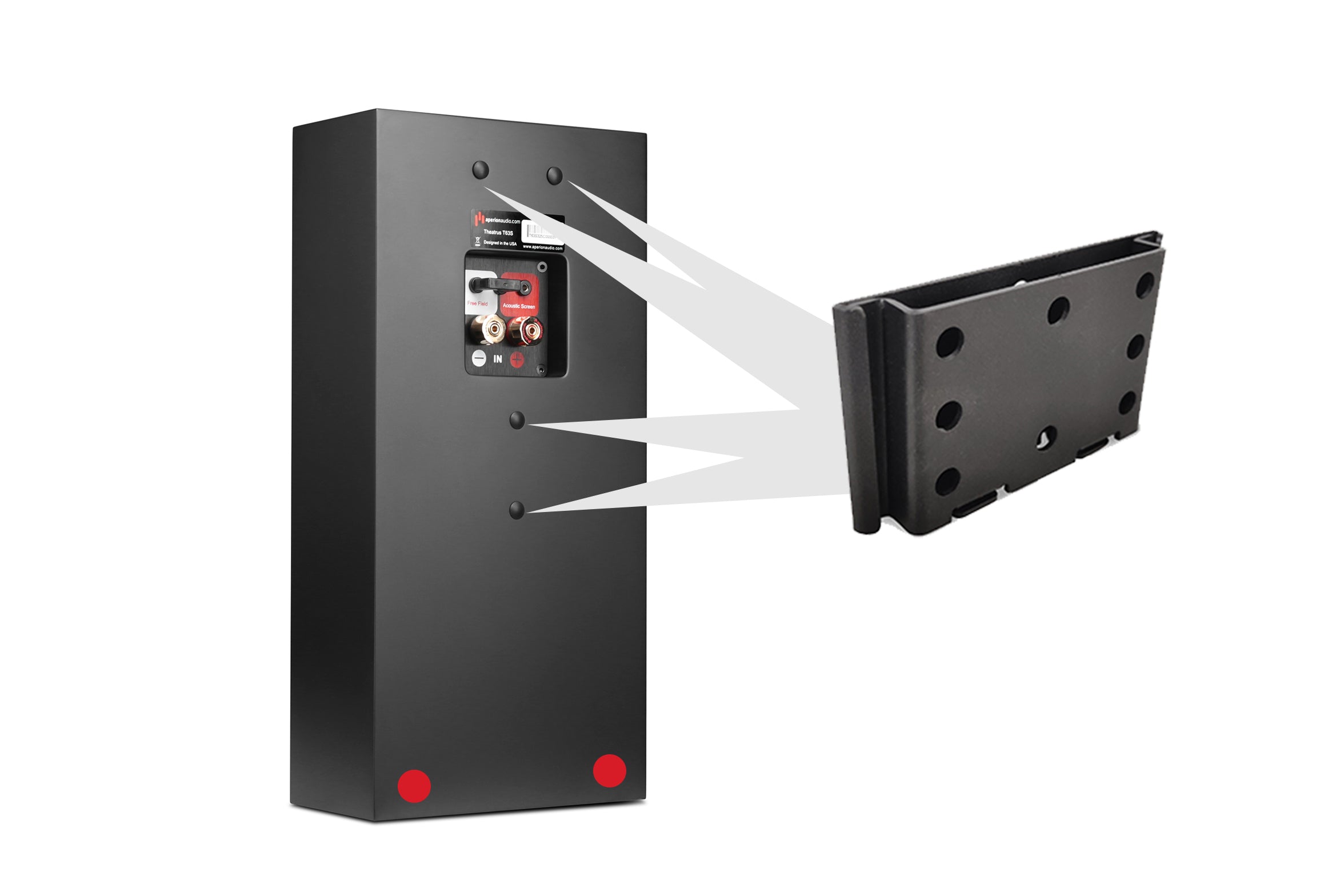

Easy mount and install
|
The Theatrus T63S On-Wall Speaker features mounting holes on the back and includes our Stealth Mount wall bracket, making installation quick and easy. There are also four rubber feet in the package. Note that you need to stick two of them near the red circle marks shown in the picture above to help keep the speakers balanced. If you want to rotate the speakers, we have also reserved a mounting hole in the middle of the back of the T63S. You will need to use our other AWM Wall Mount. |

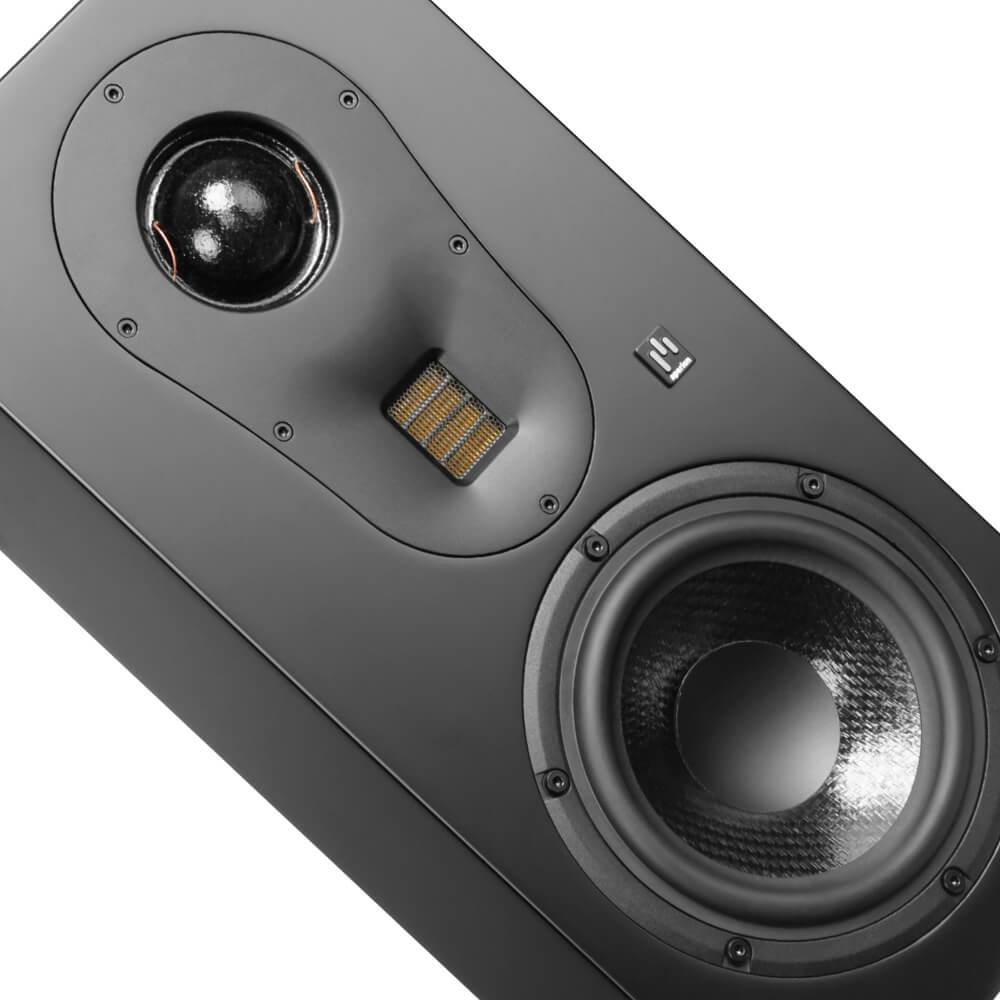

Custom tuned cabinet
| Theatrus drivers come packed in a Stealth Black MDF Anti Resonant Cabinet. |
Sealed slim cabinet design
| One of the key steps in achieving sound quality is to contain the sound from the speakers to your room, as opposed to your wall. Theatrus On-wall speakers use a sealed box enclosure. |
Rotatable Easy-Pull Spring-Loaded Logo
| Theatrus speakers can be placed On-wall, In-wall, on the ground or on the ceiling, the Theatrus line can effectively cover most of the listening area. The speaker can be arranged vertically or horizontally, dependent on the application. |

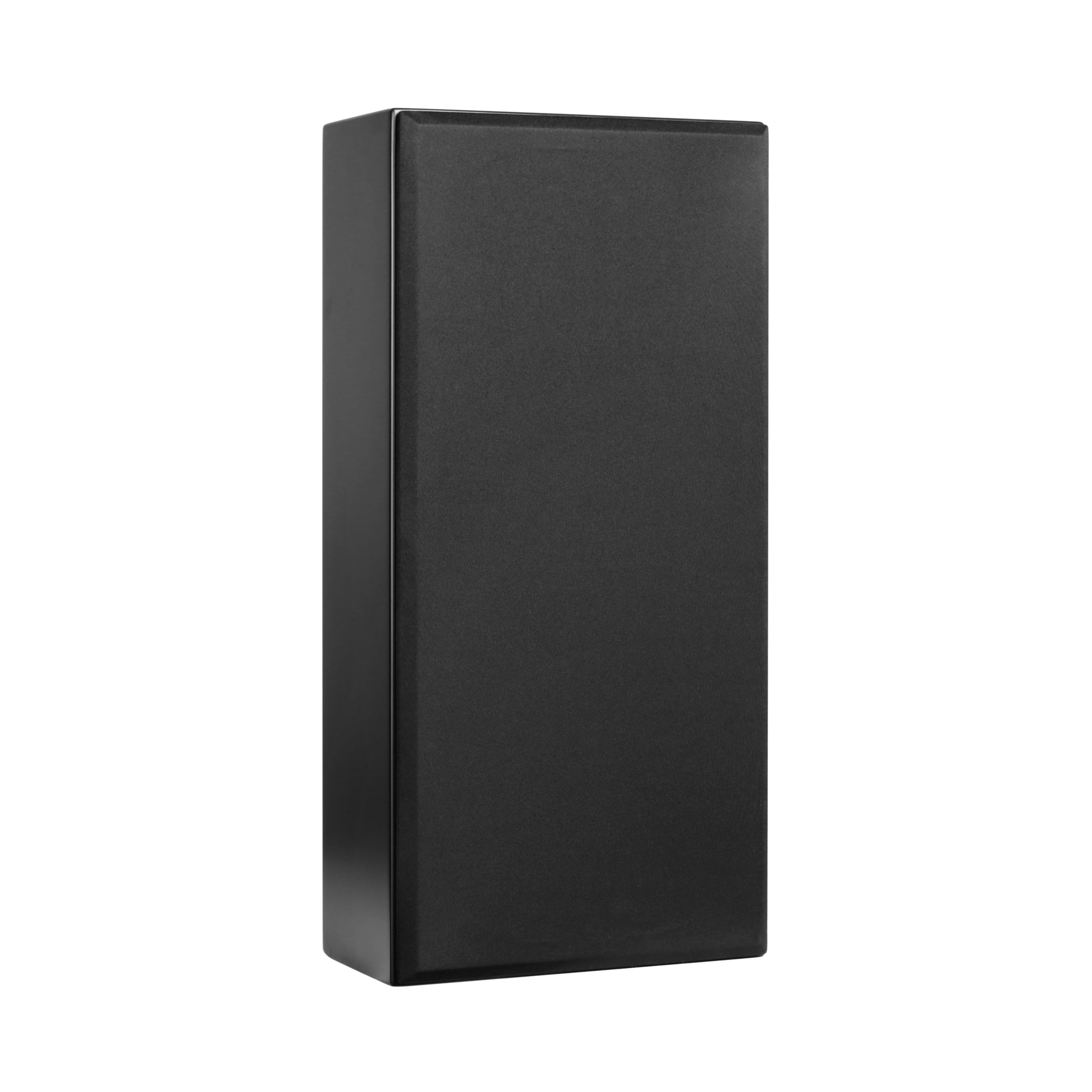

Lightweight magnetic grille
| To protect the speakers drivers from accidents, pets or curious fingers, the entire Theatrus line sports a lightweight magnetic grille which can easily be removed when you want to show off your beautiful speakers to friends and family. |
Key Features
- APERION AMT (Air Motion Transformer) Ribbon Tweeter
- APERION 2" Soft-Dome Fabric Mid-Range Driver
- APERION 6.5" Curv Cone Woofer

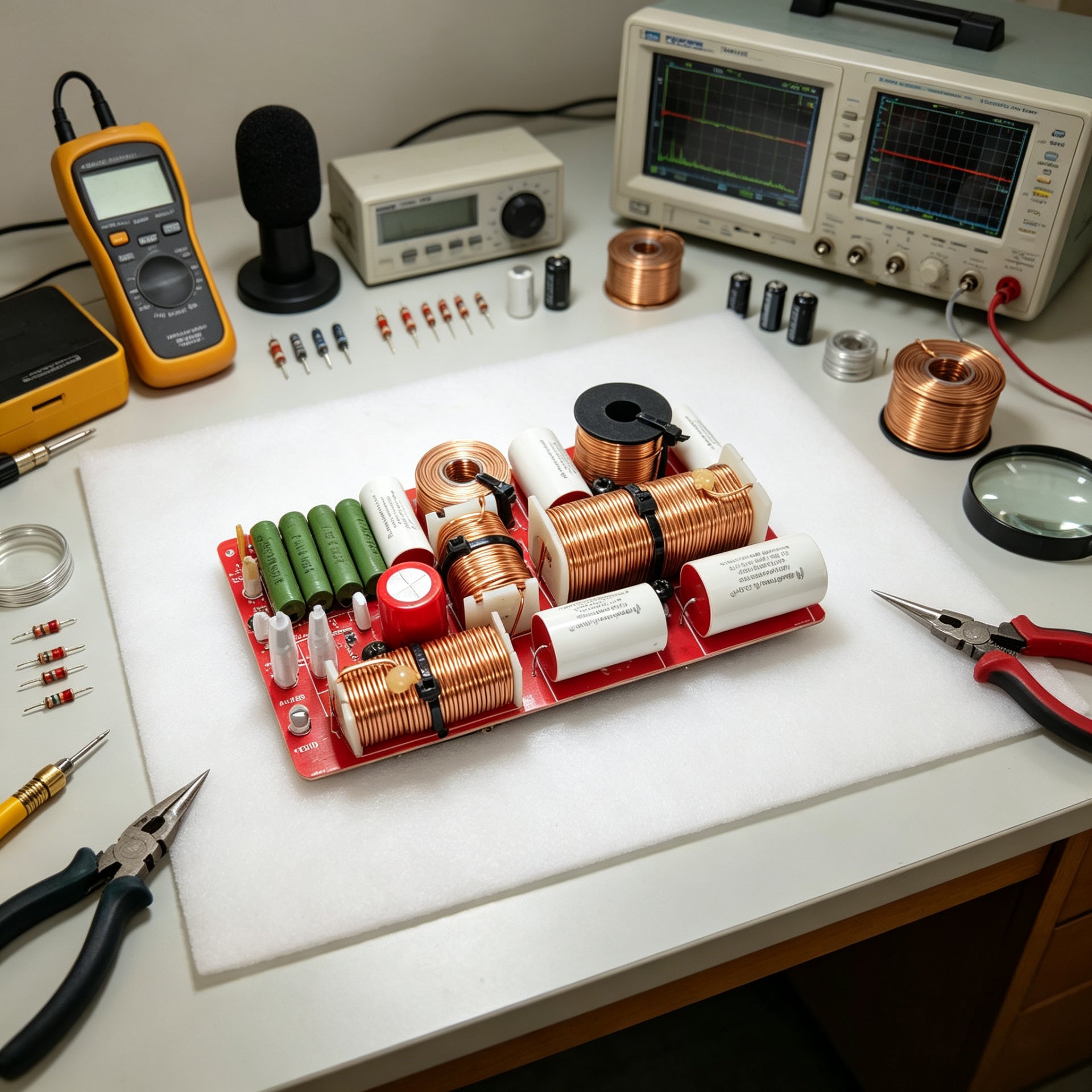

- Optimized Crossover Network with Mylar and Polypropylene Capacitors
- Rear Adjustment High-Frequency Compensation for Placement Behind Projector Screens
- Anti-Resonant Cabinet
- Rear Pre-installed Insert Threads for Easy Installation
- 5-Way Gold Plated Binding Posts
- Magnetic Acoustically Transparent Grille Cloth
- Easy-Pull Spring-Loaded Rotatable Logo
Package Contents:
- Theatrus T63S On-Wall Speaker x One (1) Pcs
- Manual x One (1) Pcs
- Polish Cloth x One (1) Pcs
- White Gloves x One (1) Pair
- Rubber Bumpers x Four (4) Pcs
- AWZ Wall Mount x One (1) Pcs
